1-1-3 Star seal perforated t-shirt garbage bag on roll making machine

HOME / PRODUCTS / Bag Making Machine / 1-1-3 Star seal perforated t-shirt garbage bag on roll making machine

Back

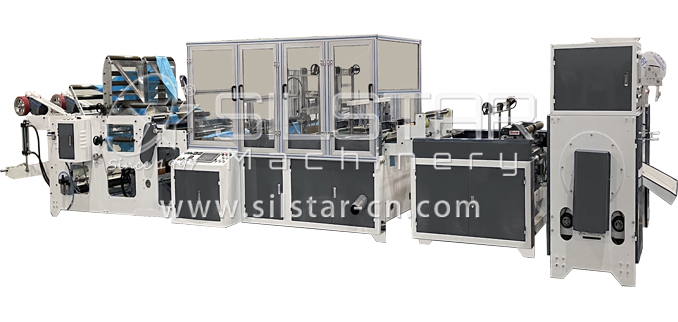

Star seal perforated t-shirt garbage bag on roll making machine

Automatic change roll device
HDPE/ LDPE t-shirt star seal bag on roll and flat star seal bag on roll without core,s-type star seal garbage bag on roll
Optional automatic paper lableing machine

Output 200-360pcs/min

Bag width 100-230mm

2 hours

Installed to
Production

15years

Everage
lifetime

99.9%

Rate of
Bag pass

Applications

Plastic bags this machine can produce.

Select Your Model

Items: GBDSA-180*2
Work line: one deck, two lines
Max bag width: 100-180mm x2
Max bag length: 300-1000mm
Output : 70-180pcs/min x2
Total power: 13kw

Items: GBDSA-200*2
Work line: one deck, two lines
Max bag width: 100-200mm x2
Max bag length: 300-1000mm
Output : 70-180pcs/min x2
Total power: 13kw

Items: GBDSA-230*2
Work line: one deck, two lines
Max bag width: 150-230mm x2
Max bag length: 300-1000mm
Output : 70-180pcs/min x2
Total power: 13kw

Specifications

Study more key configurations of this machine.

Model name	Star seal perforated t-shirt garbage bag on roll making machine
Final product	T-shirt star seal bag on roll, flat star seal bag on roll
Application	Garbage bag，trash can liner
Material	HDPE, LDPE, LLDPE ,BIO,recycled material, CaCO3 compound, masterbatch and additives
Output range	100-180pcs/min x2
Optional device	Automatic paper lableing machine
Delivery time	30-60days
Warranty	1 year
Technical assiatance	Oversea Machine commissioning services are available.

Video Show

Watch how the machine working in production.

Automatic star seal garbage bag making machine,Machine use imported nylon gear,it can reduce noise and provide stable feed length.
This star seal bag making machine also can work with auto paper labeling machine.

Description

Read the complete introduction of machine and component pictures.

Silstar’s star seal perforated t-shirt garbage bag on roll making machine is mainly used to produce star seal t-shirt bags and star seal flat bags with HDPE/ LDPE and bio-degradable material. If star seal flat bags take a large proportion of your order, GBDSA-250x2 Automatic double line high speed star seal flat bag on roll making machine is more recommeded, since it is much more faster to produce star seal flat bags.

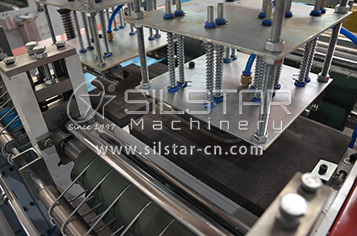

The star seal perforated t-shirt garbage bag on roll making machine is designed in double line with automatic rewinding system, and equipped with star seal knife and special designed perforation punch knife, which make the perforation line evenly and easy to tear after punching.
Silstar’s star seal perforated t-shirt garbage bag on roll making machine’s rewinding system is unique because two rolling system could work seperately, which means you could make two size bags on one machine at the same time. In some conditions, one line rolling plate could finish it’s present roll without any disturbance, even if the film snapped in another line suddenly.
After year and year’s effort, we also re-designed the unwinding systerm particularly onto the feeding part (including additional motor, and more cylinders), in order to make the film goes on the line much more tensionless, smoothly, and simultaneously on the each part of the machine.
