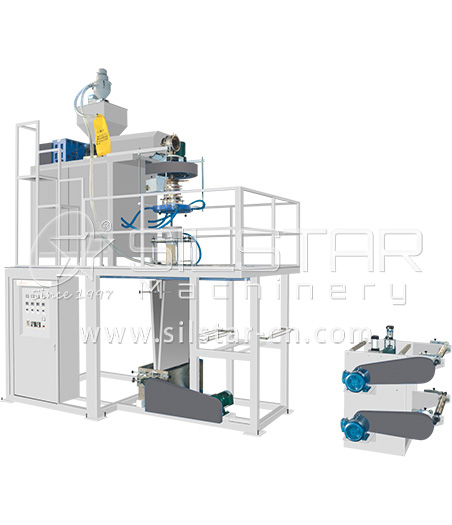

PP blown film machine

  • PP plastic film
  • Bread bag,clothes bag
Output                        40-60kg/h
Screw size                 55mm,65mm
Film width                 100-700mm(according to screw diameter)
2 hours

Installed to
15 years


Rate of
film pass


Plastic bags this machine can produce.

Select Your Model

Items: GBCP-500
Film width: 100-500mm
Screw size: 55mm
Main motor power: 22kw
Items: GBCP-600
Bag width: 100-600mm
Screw size: 65mm
Main motor Power: 30kw


Study more key configurations of this machine.
Model name PP blown film machine
Screw L/D 28:1, 30:1 (customized)
Thickness 0.015-0.1mm
Final product PP film roll
Application Flexible packaging bags,bread bag
Material  PP
Output range 40-60kg/h (According to screw size)
Optional device  Auto loader, corona treater,masterbatch dosing system
Delivery time  30-60days
Warranty   1 year

Video Show

Watch how the machine working in production
PP film blowing machine,it is productive and flexible monolayer blown film extruder


Read the complete introduction of machine and component pictures.
This blown film machine can produce PP films. PP blown film machine has the different of film blowing method from PE blown film machine. PE film bubble should be shaped by air cooling  from bottom to top after being blown out of air ring, while PP is blown from top to bottom and being water cooled.
The film blown by PP film blown machine is usually used with side seal hot cut machine, to produce packaging bags, for those garment, bakery and toys.
              Detail Pictures
