Devoted to providing solutions during the plastic bag production
HOME PRODUCTS Bag Making Machine  / 1-2-3 Semi-automatic star seal perforated bag on roll making machine

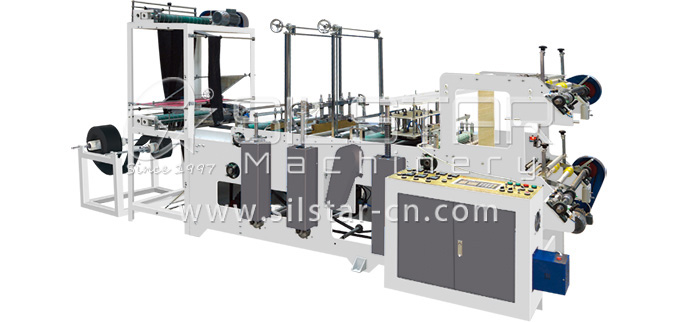

Semi-automatic star seal perforated bag on roll making machine

  • Star seal garabage bag with or without paper core, it can      make t-shirt star seal bag and flat star seal bag,also can make s-type star seal bag.
  • Garbage bag
  • HDPE,LDPE,BIO
Output                           200-360pcs/min
Bag  width                     100-230mm
2 hours

Installed to
Production
15 years

Everage
lifetime
99.9%

Rate of
Bag pass

Applications

Plastic bags this machine can produce.

Select Your Model

Items: GBDS-180*2
Work line: one deck, two lines
Max bag width: 100-180mm
Max bag length: 200-1000mm
Output : 100-180pcs/min x2
Total power: 8kw
Items: GBDS-200*2
Work line: one deck, two lines
Max bag width: 100-200mm
Max bag length: 200-1000mm
Output : 100-180pcs/min x2
Total power: 8kw
Items: GBDS-230*2
Work line: one deck, two lines
Max bag width: 150-230mm
Max bag length: 200-1000mm
Output : 100-180pcs/min x2
Total power: 9kw

Specifications

Study more key configurations of this machine.
Model name Semi-automatic star seal perforated bag on roll making machine
Final product        Flat/t-shirt/s-type star seal garbage bag on roll
Application  Garbage bag
Material  HDPE, LDPE, LLDPE ,BIO,recycled material, CaCO3 compound,  masterbatch and additives
Output range 100-180pcs/min
Delivery time 30-60days
Warranty 1 year
Technical assiatance Oversea Machine commissioning services are available.

Video Show

Watch how the machine working in production
Semi-automatic star seal perforated bag on roll making machine, it can make  t-shirt/flat star seal bag,it also can make s-type star seal bag.one machine has three functions.
We use imported nylon gear,it can reduce noise and provide stable feed length.

Description

Read the complete introduction of machine and component pictures.
This semi-automatic double lines star seal rolling bag making machine is mainly used to produce star seal vest rolling bags, star seal flat bags, star seal S type bags which are all household using garbage bags.
Due to it’s semi-automatic structure, star seal garbage bag with or without core are all available to produce on it.
It is able to used with automatic paper core changing system, when it is making bag with core, if plastic bag maker would like to achieve the high bag making speed.
              Detail Pictures
