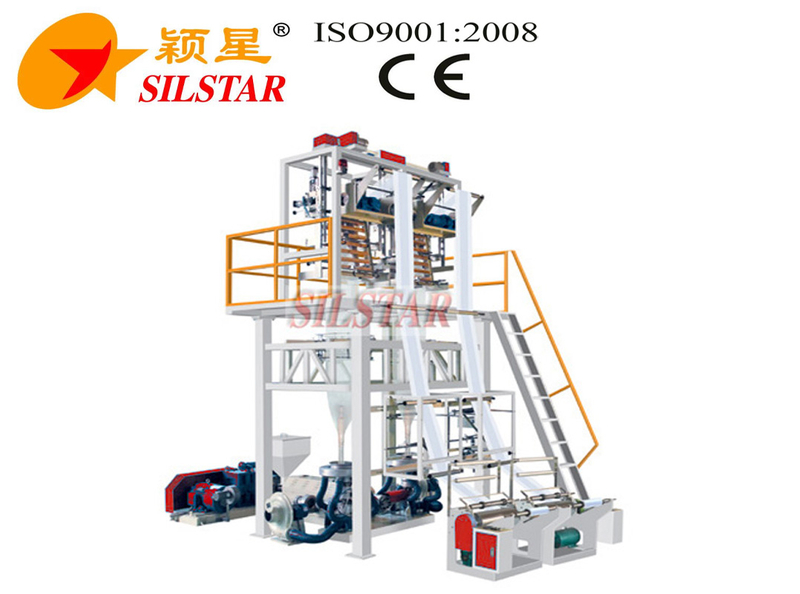

GBC-600 plastic film blowing machine

Use :
The film blowing machine can blow all sizes of LDPE. HDPE and LLDPE plastic film which is used to pack food, article of daily use, chemicals, gifts and industrial products.
The tube of the machine and the screw rod are accurately made of quality 38 CnMoAi nitro-alloy.

Feature:
1. The full set machine is made of one sets main motors. Extruding with one die head one traction and rewinding device it can improve the quality of striped film by adopting with one traction and one rewinding device.
2. The screw stem and cylinder ate made of 38CrMoAl high quality alloy steel after fine finishing and nitrided treatment, which has high hardness, strong resistance to corrosion, durable service.
3. The die head is plated with hard chrome of screw mandrel type structure with even and smooth discharging, the blown plastic film has fine finishing the blower is of labyrinth structure with even air output.
4. The coiling unit adopts pressure friction rewinding or center rewi

  • SILSTAR
Quantity:

Film blowing machine, twin head film blowing machine can produce two size of film ,one head produce star seal film , another head produce t-shirt film

Model

GBC-600

screw    diameter

55mm

screw    length  diameter

28:1

No. of    heads

2

film    blowing  width

100-600mm

film    blowing  thickness

LDPE0.015-0.20mm   ; HDPE 0.008-0.05mm

 output

 30-70kg/h

 total    power

 45kw

 dimension    of  the  machine

 5200*2900*4500mm

total    weight

 4800kg
