Interleave overlap draw tape bag making machine

  • Interleave overlap drawstring garbage bag draw tape bag
  • Interleave bags overlap technology
Output                        100-240 pcs/min
Bag width                   Max 900mm
Bag length                   Max 1000mm
2 hours

Installed to
15 years


Rate of
Bag pass


Plastic bags this machine can produce.

Select Your Model

Items: GBBCR-1000 III
Work line: one deck, one line
Max bag width: 450-800mm
Max bag length: 500-900mm
Output : 100-240 pcs/min
Total power: 55kw
Items: GBBCR-1200 III
Work line: one deck, one line
Max bag width: 500-1000mm
Max bag length: 600-1000mm
Output : 100-240 pcs/min
Total power: 55kw


Study more key configurations of this machine.
Model name Interleave overlap draw tape bag making machine,draw string bag making machine
Final product        Interleaf draw tape bag on roll
Application  Garbage bag,   Construction garbage bag
Material  HDPE, LDPE, LLDPE , CaCO3 compound,  masterbatch and additives
Output range 100-240pcs/min
Delivery time 30-60days
Warranty 1 year
Technical assiatance Oversea  machine commissioning services are available.

Video Show

Watch how the machine working in production

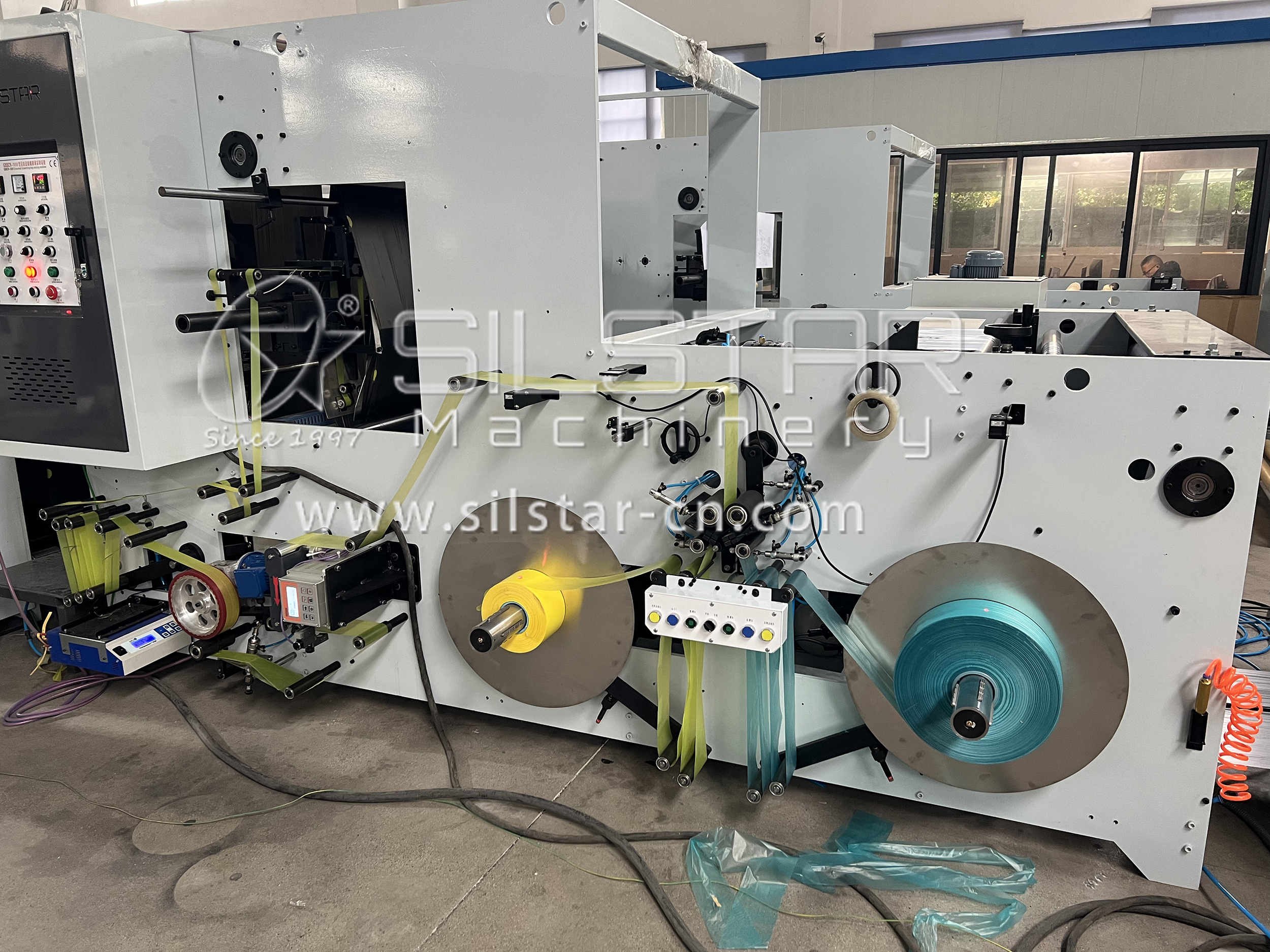

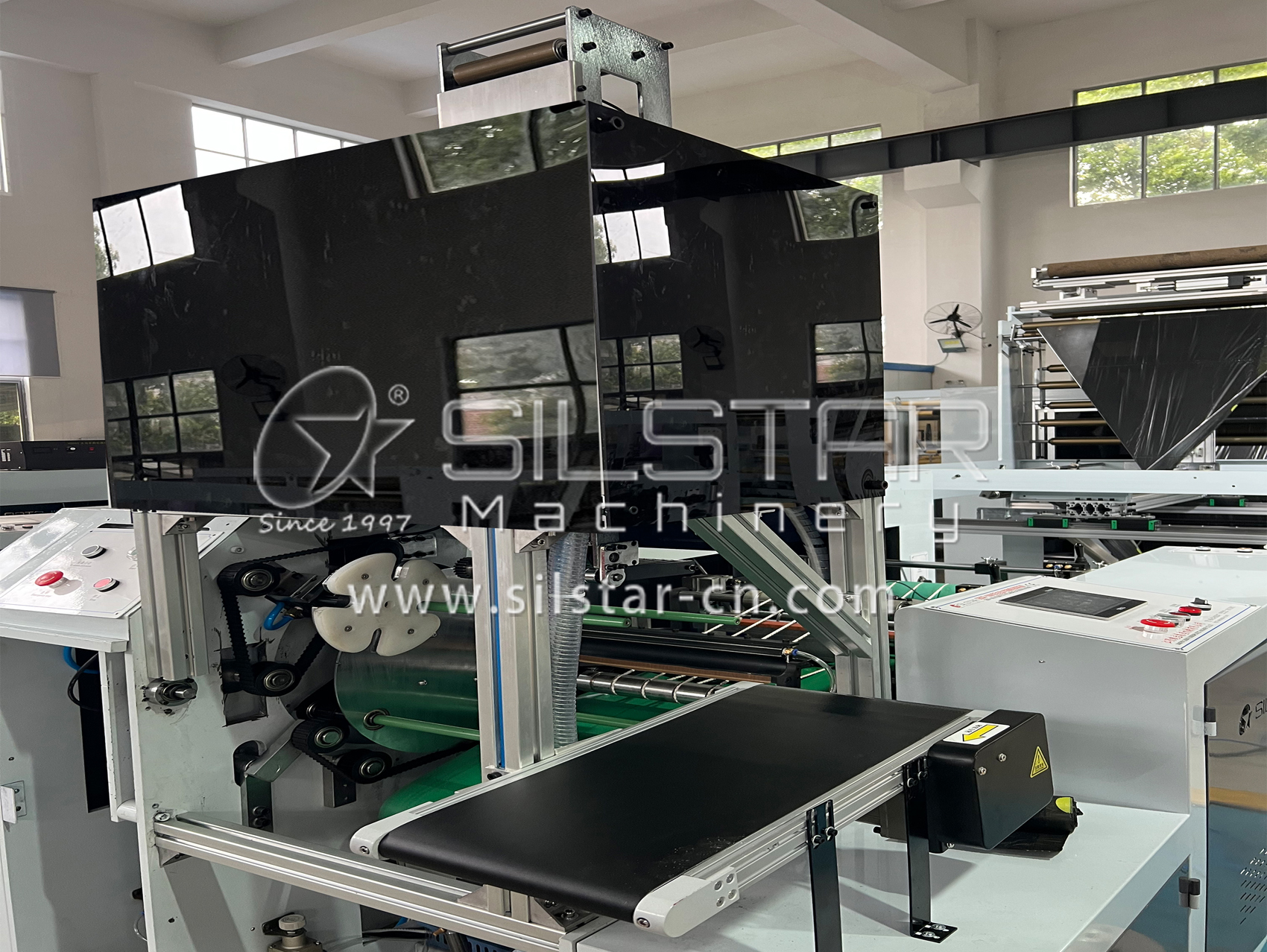

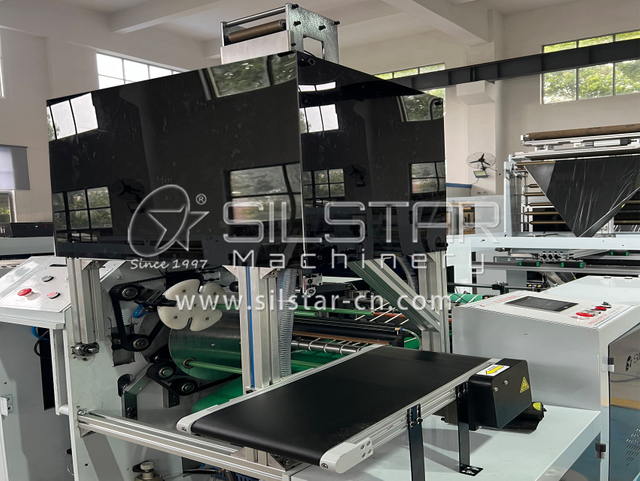

 Interleaf bags making machine can make  interleave bag,draw string interleave bag,automatic rewinder,don't need use hand to change bag roll. Automatic  overall paper labeling machine is avliable.
We not only can make interleave drawstring  drawtape garbage bag making machine, but also can make interleave/overlap bottom seal double fold bag making machine with or without s punch hand, interleave flat or t-shirt star seal garbage bag making machine.


Read the complete introduction of machine and component pictures.
As interleaf bags are becoming popular these years, we developed the draw string interleaf bag making machine,S type bottom seal interleaf bag making machine, and interleave star seal garbage bag making machine  to meet those requirements in the markets.
Comparing to those old type machine which only using cold knife cutting bag off, Silstar’s interleaf bag making machine was designed peforate prior to be snapped before rolling.
Servo motors control the feeding and rolling movements respectively,  which keep machine more steady and works efficiently.
The rolling system could also do rolling and roller drop-off automaticlly.
              Detail Pictures
