Heavy duty bottom seal thick bag making machine

This heavy duty bottom seal thick bag making machine is suitable for making HDPE/ LDPE packaging bags
Bottom seal bag, fresh-keeping bag
HDPE,LDPE

Output 280pcs/min

Bag width 500-900mm

2 hours

Installed to
Production

15 years

Everage
lifetime

99.9%

Rate of
Bag pass

Applications

Plastic bags this machine can produce.

Select Your Model

Items: GBD-500
Work line: two decks, two lines
Max bag width: 500mm
Output:20-140pcs/min*2
Total power: 5kw

Items: GBD-700
Work line: two decks, two lines
Max bag width: 700mm
Output: 20-140pcs/min*2
Total power: 6.5kw

Items: GBD-900
Work line: two decks, two lines
Max bag width: 900mm
Output: 20-140pcs/min*2
Total power: 12kw

Specifications

Study more key configurations of this machine.

Model name	Heavy duty bottom seal thick bag making machine
Final product	Bottom seal bag, heavy duty bag, dust bag
Application	Printed,unprinted flat bag and freezer bag(bottom seal bag),piece by piece bag, Die Cut Punched Bag
Material	HDPE, LDPE, LLDPE ,BIO,recycled material, CaCO3 compound, masterbatch and additives
Output range	20-140pcs/min

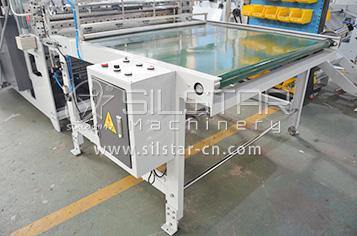

Optional device	Convery belt
Delivery time	30-60days
Warranty	1 year
Technical assiatance	Oversea Machine commissioning services are available.

Video Show

Watch how the machine working in production.

This heavy duty bottom seal thick bag making machine, unwinder is come with AC motor inverter controlled, film feeding contolled by Taiwanese servo motor. All of these are made the bottom seal bag making machine work durable and more efficient.

Description

Read the complete introduction of machine and component pictures.

This heavy duty bottom seal thick bag making machine is suitable for making HDPE/ LDPE packaging bags like dust bags, and heavy duty garbage bags thichness usually from 20micron to 60micron. For shopping bags, grocery bags, garment packing bags, thickness from 5 micron to 10 microns.

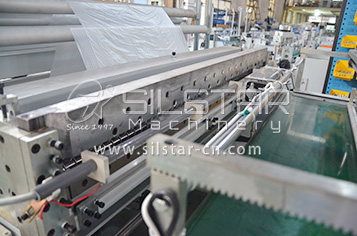

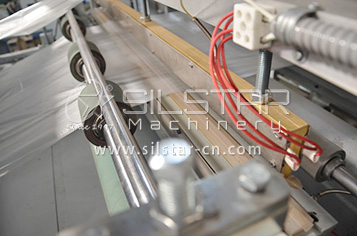

This bottom seal bag making machine equipped with hot sealing knife and cold cutting knife which is heavy and stainless. Due to it’s durable and high-quality knives, bags can be cut off evenly with a firmly sealed bottom, the maximum film thickness even can reach at 200 micron.

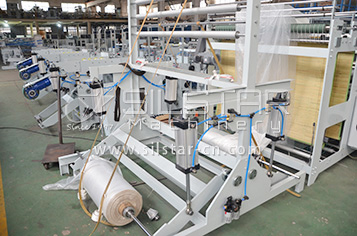

On this bottom seal bag making machine, unwinder is come with AC motor inverter controlled, film feeding contolled by Taiwanese servo motor. All of these are made the bottom seal bag making machine work durable and more efficient.
