GBDSA-500
SILSTAR
84778000
| Quantity: | |
|---|---|

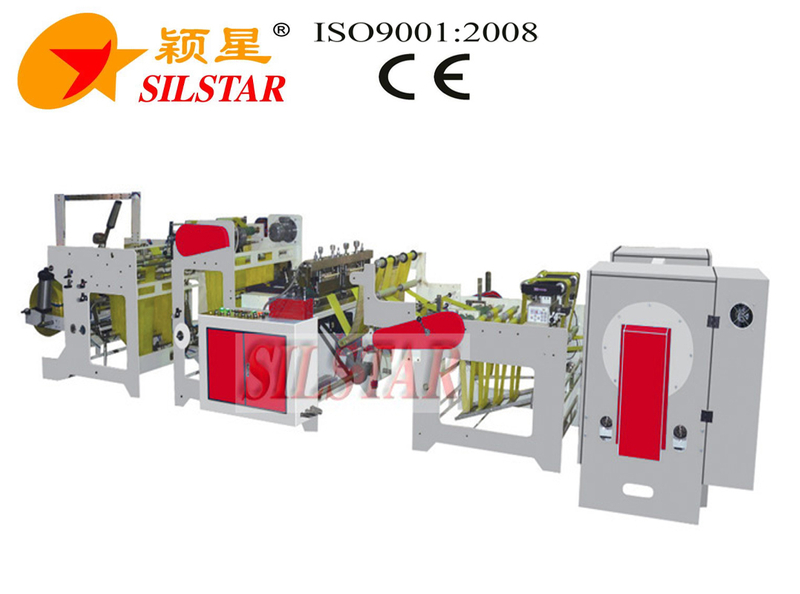

The machine is specialized in producing star seal flat bag on roll without core.
Features:
1. Automatic rewinder with double layer film, PLC and screen controller
1. Automatic counting and alarming.
2. Two Sets of 3 kw Servo motor control speed and bag length
4. Use edge position control
5. Automatically stop film ,and machine has unit of seal broken film .
6. Photoelectric eye track, automatic shutdown when the wrong mark.
7. It is suitable for all kinds of low density polyethylene plastic film (LDPE), high density polyethylene (HDPE) film bags, etc..
8. Widely used in packaging food, cloth, industrial and electrical products.
Bag making width | 80-180mm *2 ( rewinder width ) |
Rubber roller width | 550mm |
Bag making length | 100-1200mm |
Bag making thickness | 0.006-0.035mm |
Bag making speed | Max speed 200 pcs/min *2 |
Bag making methods | Rolling flat star seal bag |
Unwinder methods | Dance roll (tension) ,installed Linear potentiometer |
Main motor | 1.5kw , 1.5kw DELTA inverter adjust |
Unwinder motor | 550W*2 , DELTA inverter adjust |
Feeding motor | 3KW Servo motor*2 |
The machine is specialized in producing star seal flat bag on roll without core.
Features:
1. Automatic rewinder with double layer film, PLC and screen controller
1. Automatic counting and alarming.
2. Two Sets of 3 kw Servo motor control speed and bag length
4. Use edge position control
5. Automatically stop film ,and machine has unit of seal broken film .
6. Photoelectric eye track, automatic shutdown when the wrong mark.
7. It is suitable for all kinds of low density polyethylene plastic film (LDPE), high density polyethylene (HDPE) film bags, etc..
8. Widely used in packaging food, cloth, industrial and electrical products.
Bag making width | 80-180mm *2 ( rewinder width ) |
Rubber roller width | 550mm |
Bag making length | 100-1200mm |
Bag making thickness | 0.006-0.035mm |
Bag making speed | Max speed 200 pcs/min *2 |
Bag making methods | Rolling flat star seal bag |
Unwinder methods | Dance roll (tension) ,installed Linear potentiometer |
Main motor | 1.5kw , 1.5kw DELTA inverter adjust |
Unwinder motor | 550W*2 , DELTA inverter adjust |
Feeding motor | 3KW Servo motor*2 |
