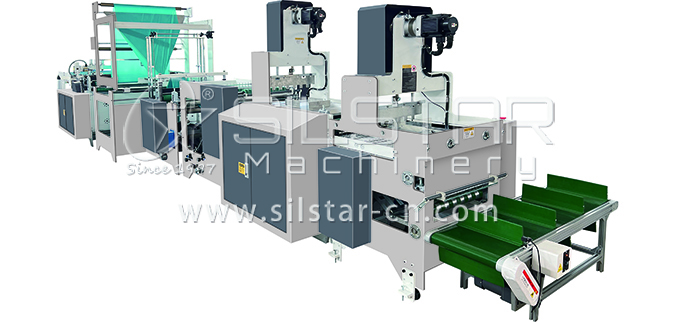

Four fold charity donation bag making machine

This machine is able to produce folded bag
Charity bag,piece by piece t-shirt bag
HDPE,LDPE

Output 20-60pcs/min

Bag width 300-600mm

3-2-2 Four fold charity donation bag making machine-678322-0723

2 hours

Installed to
Production

15 years

Everage
lifetime

99.9%

Rate of
Bag pass

Applications

Plastic bags this machine can produce.

Select Your Model

Items: GBZD-600
Work line: one deck, one line
Max bag width: 300-600mm
Max bag length: 700-1000mm
Output : 20-60pcs/min
Total power: 16kw

Items: GBZD-800
Work line: one deck, one line
Max bag width: 100-800mm
Max bag length: 700-1000mm
Output : 20-60pcs/min
Total power: 17kw

Specifications

Study more key configurations of this machine.

Model name	Four fold charity donation bag making machine
Final product	T-shirt bag, flat bag
Application	Printed and non-printed charity bag, donation
Material	HDPE, LDPE, LLDPE ,BIO,recycled material, CaCO3 compound, masterbatch and additives
Output range	20-60 pcs/min
Delivery time	30-60 days
Warranty	1 year
Technical assiatance	Oversea Machine commissioning services are available.

Video Show

Watch how the machine working in production.

Charity bag was being folded three or four times after sealing and cutting, then packed together in 1 or 5 or 10 pieces.

Description

Read the complete introduction of machine and component pictures.

Four fold bag can be used in a very wide range, including the packaging bags for charitable donation, it is called charity bags to pack some old clothes then donate to chritable organization.

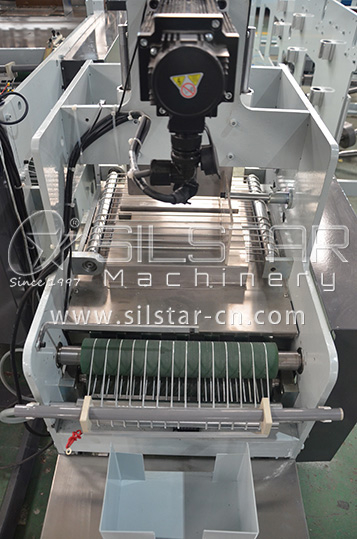

This kind of bag was being folded four times after sealing and cutting, then are being packed together in 5 or 10 pieces.

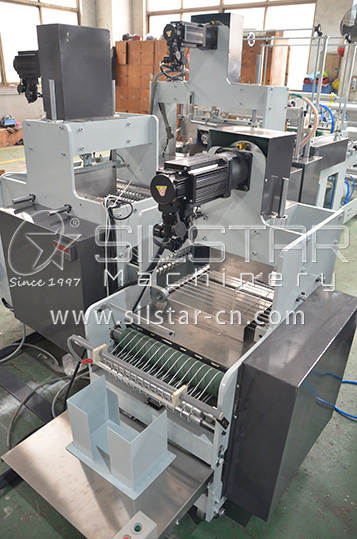

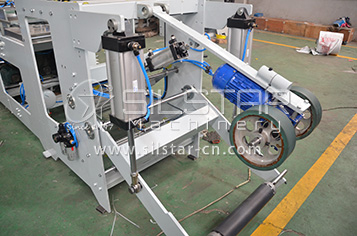

This four fold bag making machine are using air cyclinder for rewinding, bag making servo motor control bag making length, inverter motor control folding frame.
