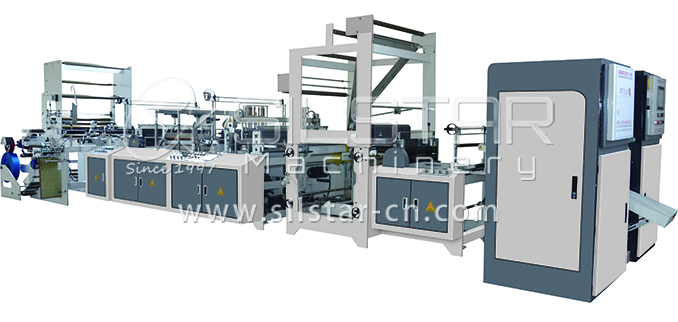

Drawtring perforated garbage bag on roll making machine

The drawtring perforated garbage bag on roll making machine is speacial designed for making HDPE/ LDPE draw tape bag on roll without core.
Optional automatic paper lableing machine
Draw tape bag on roll

Output 150pcs/min

Bag width Max 850mm

2 hours

Installed to
Production

15 years

Everage
lifetime

99.9%

Rate of
Bag pass

Applications

Plastic bags this machine can produce.

Select Your Model

Items: GBBCR-1000
Work line:one deck.one line
Max bag width: 300-850mm
Max bag length: 200-950mm
Output : 70-150pcs/min
Total power: 13kw

Items: GBBCR-1200
Work line:one deck.one line
Max bag width: 500-1000mm
Max bag length: 600-1000mm
Output : 70-150pcs/min
Total power: 13kw

Specifications

Study more key configurations of this machine.

Model name	Drawtring perforated garbage bag on roll making machine
Final product	Draw tape bag on roll, draw string bag on roll
Application	Garbage bag, cats litter box liner
Material	HDPE, LDPE, LLDPE ,BIO,recycled material, CaCO3 compound, masterbatch and additives
Output range	70-150pcs/min
Optional device	Automatic paper lableing machine
Delivery time	30-60days
Warranty	1 year
Technical assiatance	Oversea Machine commissioning services are available.

Video Show

Watch how the machine working in production.

Automatic draw tape bag making machine,use two servo motors,machine speed is improved.Machine use imported nylon gear,it can reduce noise and provide stable feed length.
draw tape bag making machine also can work with auto paper labeling machine.

Description

Read the complete introduction of machine and component pictures.

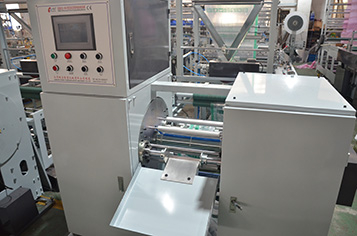

Silstar’s automatic draw string bag making machine are using the new designed and stable rolling system which can release you from the manual rolling mode, improve the production efficiency remarkably.
Automatic draw string bag making machine is able to produce HDPE,LDPE draw string/draw tape bags. Due to the photocell being equipped on the machine, it makes the machine can easily handle both printed bags and white bags.

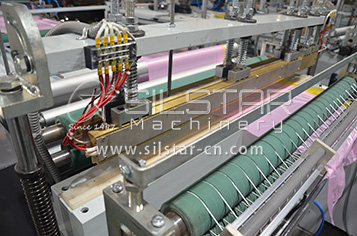

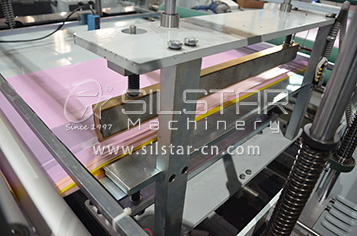

By increasing of row material cost these year, many plastic bag maker are adding recycle material or Caco3 into granules, which causes the film are harder to seal. While Silstar’s seal knife is could seal the film which are mixed with recycle material and CaCO3 firmly.
