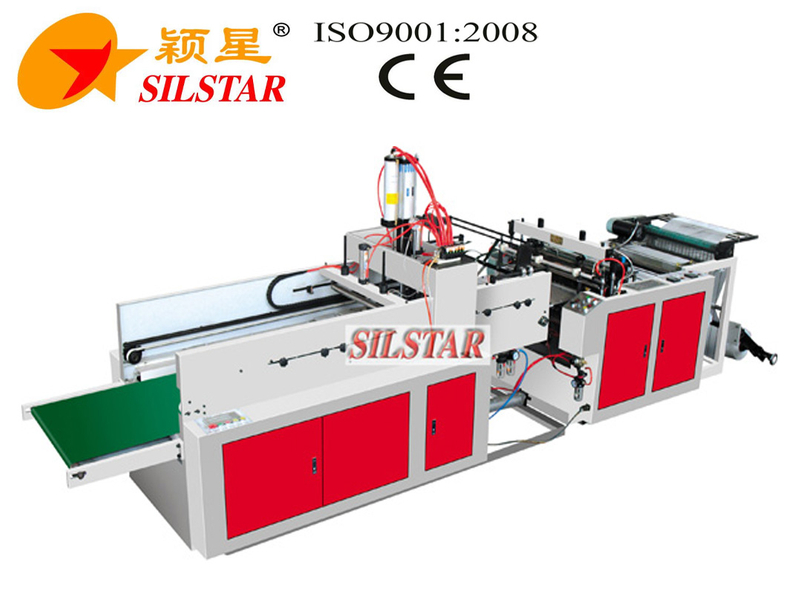

GBRF-400*2 Full Automatic Pouching Double Lines Heat Sealing & Cutting Bag Maker

Use:
Machine is suitable for hot-sealing & hot-cutting high-density polyethylene (HDPE) and low-density polyethylene (LDPE) plastic film.

Features:
1. Full automatic ,improve the output .
2. It adopts computer color code-tracking, hydraulic punch the "U" shape vest bag in one time, it is a special bag maker for producing vest bags.
3. And with such features, such as easy operation and high finished products, so the production efficiency can be improved greatly.
4. Fully automatic: It can do one-line production of the following steps: Heat sealing and Heat cutting at the same time, punching, sending bags out by conveyer belt, and waste film delivering. All the above steps is done by one machine. In this way, the labor salary is saved.
  • SILSTAR

Availability:
Quantity:

Model

GBRF/2-400

Bag making   width

150-350mm×2

Bag making   length

100-600mm

Bag making   speed

120-180pcs/minute×2

Bag making   thickness

0.01-0.05mm

The kinds of   bag making

Color   printing bagswhite bags

Total power

7kw

Dimension of   the machine

6000×1900×1600mm
