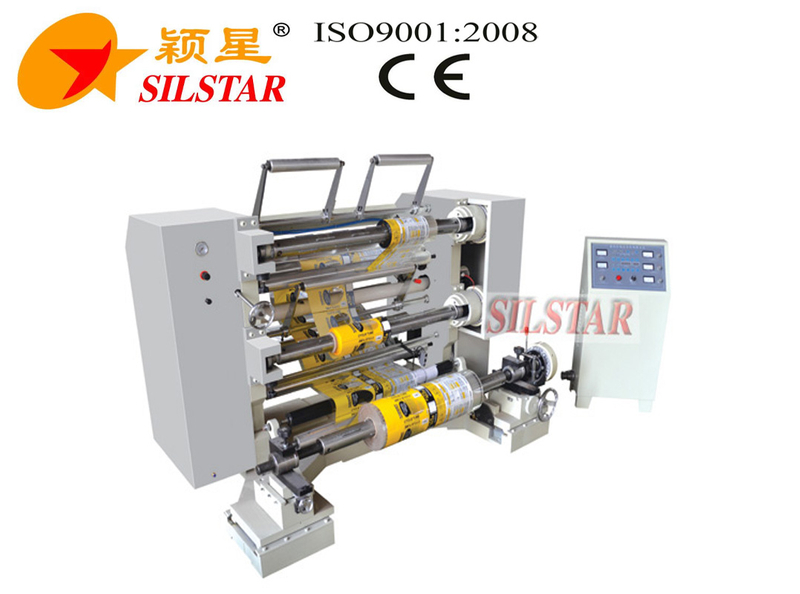

GBFQ-1100 Computer Automatic Slitting Machine

Use:
This machine can cut various reel of material, such as BOPP, pet, CPP, nylon and aluminium foil etc.
It is a new generation product which commbines pneuatic installation, machinery and instrement into a whole, it is equipped with imported photoelectric part. The expansion of reels is controlled by magnetic particle driving. The reel is automatically adjusted. Photoelectrisity follows the transparent material border or printing color code.

Feature :
1. They are upright striping machines.
2. Independent microcomputer control screen making easy operation.
3. Magnetic powder control for tension of reeling and unreeling.
4. Auto metering with material running, auto photoelectric error correction for unreeling.
5. Equipped with side waste scrap air-blowing sending air-blowing sending or reeling devices.
6. Dual-aire swelling shaft reeling, smooth and level end face splitting.

  • SILSTAR
Quantity:

Model

Cutting width

Cutting   reel’s diamenter

Cutting speed

Cutting   precision

Paper   roller’s innar diameter

Total power

Total weight

Dimension of   the machine

GBFQ-1100

20-1100m

Φ600mm

10-150m/min

≦1mm

Φ76mm

2.7kw

1800kg

1800×1300×1400mm

GBFQ-1300

20-1300m

Φ600mm

10-150m/min

≦1mm

Φ76mm

4kw

2300kg

2100×1300×1400mm
