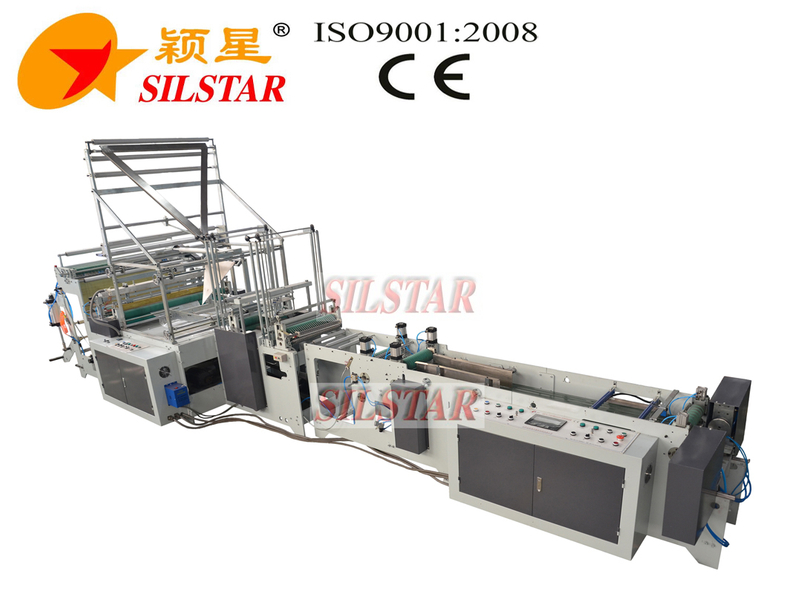

GBDS-1200 S-type Interleaf Bag Making Machine

  • GBDS-1200
  • SILSTAR
  • 84778000
Quantity:

Bag making type

Bottom sealed,   double folded, interleave rewind

Bag making speed

45 pcs/min

Bag making length

300-1600mm

Bag making width

200-1100mm   (before folding )

Bag making thickness

LDPE:0.02-0.08mm    HDPE:0.006-0.03mm

Machine main controller

PLC and touch screen

Unwinder motor

550w AC, inverter control

Feed motor A&B:

A:2kw+B:1.5kw ,servo motor

Main motor

1.1kw, inverter control with reducer

Rewinder Pin

Double needle, pneumatic,automatic

Snap motor

350 Step Motor

Material Loading

pneumatic;

Dimension of the machine

7440*1820*2680mm

 Machine is automatic rewinder, can produce s-type garbage bag.

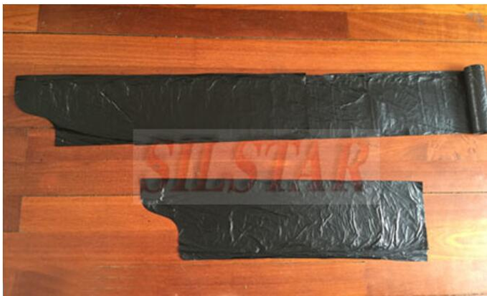

s type bag
