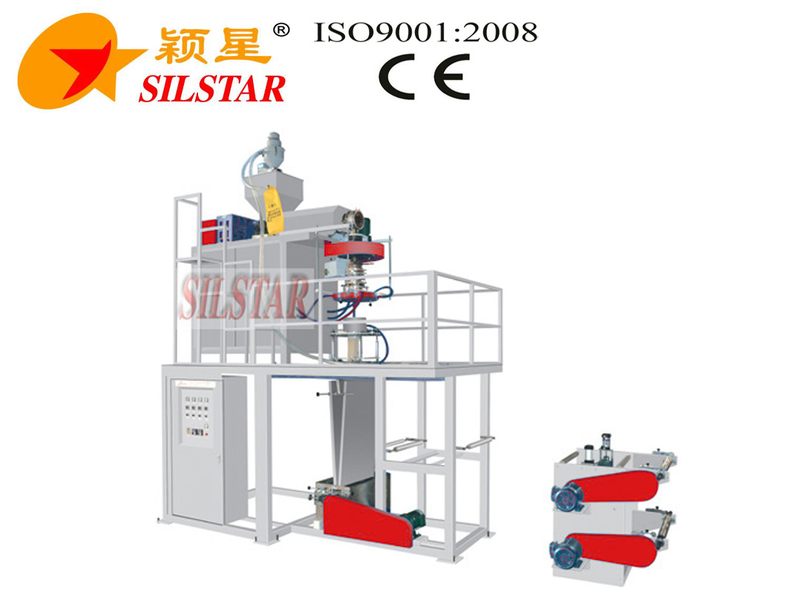

Use:
It adapts to produce different specs of transparant packing bag such as apparel package, children's toy package., medical product package and so on.
Feature:
1- Screw and barrel: The screw and barrel are made of 38CRMOALA high quality alloy Steel. It is after fine finishing and nitrided treatment. It has high hardness, strong resistance to Corrosion, durable service.
2- Die head: The die head is plated with hard chrome, of screw mandrel type structure. It can Strengthen the intensity and evenness of plastic film.
3- Rotary Die head device: Rotary die head can be rotated to left or right 360 angles, it can Strengthen the intensity and evenness of plastic film
4-Double Rewinder: Double rewinder device is suitable for single layer film roller. It is back to Back structure. The rewinder adopts pressure friction rewinding or center rewinding device, Which is driven by torque motor. It is even and smooth rewinding and easy roll changing.
Quantity: | |
---|---|
Model | GBCP-500 | GBCP-700 |
Suitable material | PP | PP |
Film widthrange | 500mm | 700mm |
Film thickness | 0.015-0.15mm | 0.015-0.15mm |
Screw diameter | 55mm | 65mm |
Screw(L/D)ratio | 30:1 | 30:1 |
Screw/Barrel material | 38CrMoAl | 38CrMoAl |
Heater capacity | 15kw | 18kw |
Auto-thermo control(point) | 5 | 5 |
Barrel cooling blower | 0.25kw×2 | 0.25kw×2 |
Driving motor | 11kw | 18.5kw |
Die diameter | 200mm | 280mm |
Air ring diameter | 350mm | 450mm |
Production volume | 40kg/h | 60kg/h |
Cooling fan | 0.25kw×4 | 0.25kw×4 |
Take-up roller width | 600mm | 800mm |
Effective width | 500mm | 700mm |
Take-up motor | 1.1kw | 1.5kw |
Take-up speed | 5-30m/min | 5-30m/min |
Winding roller width | 600mm | 800mm |
Max winding width | 450mm | 450mm |
Winding motor | 0.5kgf/cm | 0.5kgf/cm |
Machine dimension | 5000×1600×3800mm | 5300×1800×3800mm |
Net/Grossweight | 2100/2600kg | 2400/3000kg |
