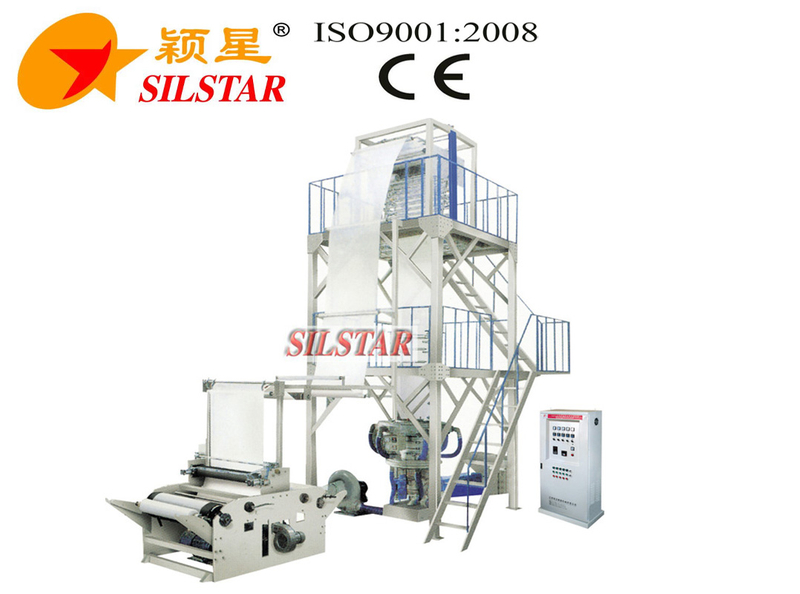

GBCE-1600 Plastic Film Blowing Machine

Use:
It is suitable for blowing the plastic laminated film of low density polyethylene(LDPE), high density polyethylene (HDPE) and linear low density polyethylene (HDPE) etc.Which are widely used for packing liquid, printed base material, products for export and industrial products, etc.

Feature:
1. The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and
Durable service after precision finishing and nitrogen treatment.
2. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.

  • SILSTAR

Availability:
Quantity:
Inquire Add to Basket

Model

GBCA-600

GBCE-1000

GBCE-1200

GBCE-1600

Screw   diameter

45mm

55mm

65mm

75mm

Screw length   proportion(L/D)

28:1

28:1

28:1

28:1

Film-blowing   width

100-600mm

300-1000mm

300-1200mm

300-1600mm

Film-blowing   thickness

LDPE0.015-0.20mm    HDPE0.008-0.05mm

Output

10-45kg/hour

20-60kg/hour

20-80kg/hour

50-100kg/hour

Main motor   power

11kw

22kw

37kw

45kw

Dimension of   the machine

5000×1500×4000mm

5400×2800×4800mm

5400×3000×6800mm

6200×3400×7500mm

Total weight

3000kg

3800kg

4200kg

4800kg
