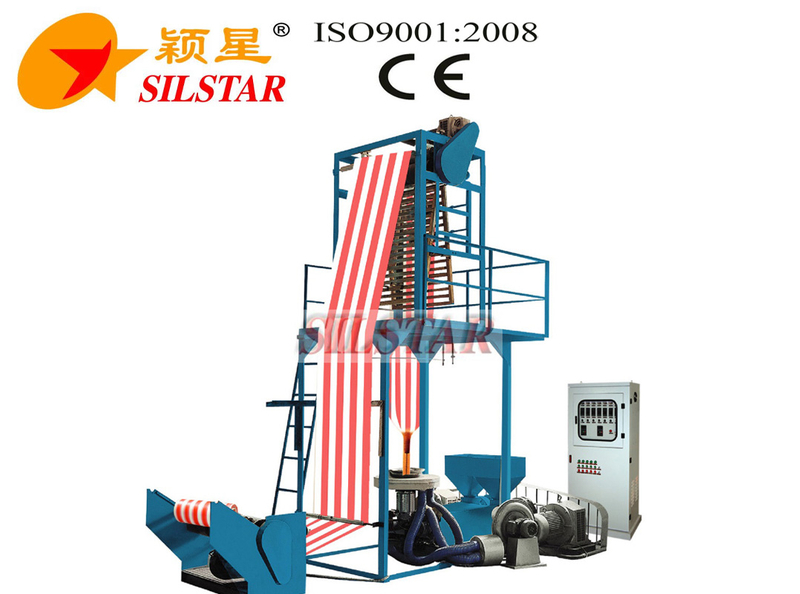

GBCB-600 Double-Screw Plastic Film Blowing Machine

Fature :
1. Double-layer Co-extrusion Laminated film can prolong the length for preservation of liquid package.
2. The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and
Durable service after precision finishing and nitrogen treatment.
3. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4. Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling tidy and roll-changing easy
  • SILSTAR

Availability:
Quantity:

 Screw   diameter

  45mm

   55mm

      65mm

 Screw   length proportion

     28: 1

       28: 1

       28: 1

 Film-blowing   width

    100-600mm

 300-1000mm

 300-1200mm

 Film-blowing   thickness

 LDPE0.015-0.20mm
    HDPE0.008-0.05mm

 LDPE0.015-0.20mm
    HDPE0.008-0.05mm

 LDPE0.015-0.20mm
    HDPE0.008-0.05mm

 Output

 10-60Kg/hour

 10-45Kg/hour

  20-70Kg/hour

 Total   power

 35kw

 38kw

 48kw

 Dimension   of the machine

 5000*2500*4200mm

 5400*2800*4800mm

 6200*3000*4800mm

 Total   weight

 4500Kg

 3800Kg

  4300Kg
