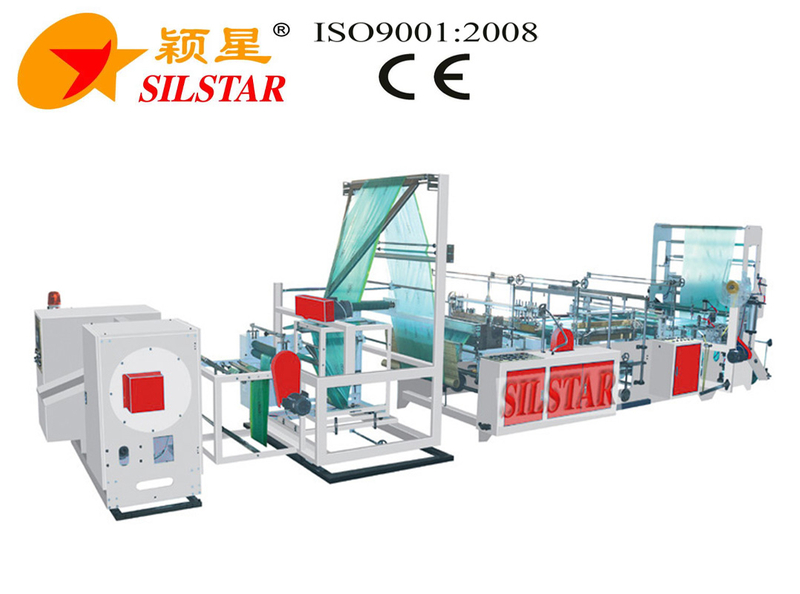

GBBCR-1000 II Automatic draw tape bag making machine

Features for Automatic Rolling Garbage Bag Making Machine with Poly Draw strings
1) the aircraft used by the company's advanced technology manufacturing.
2) using computer-controlled, stepping motor structure models.
3) with the photoelectric automatic tracking, with white bags, color bags conversion, fixed-length micro-computer, automatic counting, the number of alarms, automatic temperature control.
4) with automatic cut mouth, fighting holes, the Big Dipper Park hole, wearing belts, belt shift, side sealing, bottom sealing, point break, fold, roll and sub-volume mechanical devices.
5) with no tension sealing mechanism, sealing off sync with the point, back strong and beautiful.
6) the aircraft can be processed with garbage bags on roll, roll flat bags and flat bags function.
7) machine using a production line, high automation, is the production of garbage bags to wear with the ideal equipment, a repla
  • SILSTAR

Availability:
Quantity:

Model

GBBCR-1000Ⅱ

Bag making   width

300-850mm

Bag making   length

100-950mm

Bag making   speed

20-70m/min

Bag making thickness

0.02-0.05mm

The kinds of   bag making

Color   printing bagsWhite bags

Bag making   methods

Rolling bag

Total power

11kw

Dimension of   the machine

7500×1700×1850mm

Total weight

3800kg
