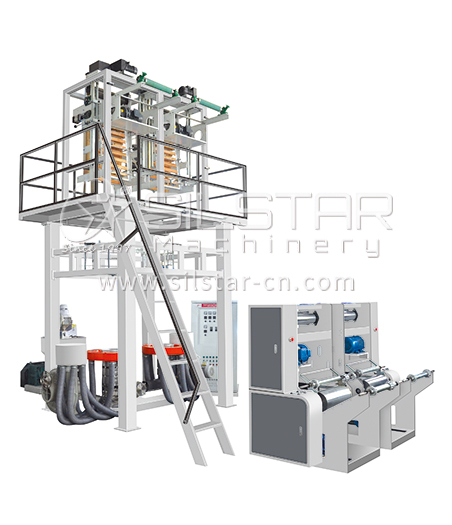

Twin head blown film machine

  • The multi-functional blow film machine offers an economic alternative and has a much faster return on investment.
  • Blow two different widths and types of film at the same time.
  • The twin head film blowing machine also can produce biodegradable material film.
Output Range                 10-70kg/h
Screw size                       45mm,55mm
Film width                       100-600mm
2 hours

Installed to
Production
15 years

Everage
lifetime
99.9%

Rate of
film pass

Applications

Plastic film this machine can produce.

Select Your Model

Items: GBC-400
Film width: 100-400mm
Screw size: 45mm
Main motor Power: 11kw
Items: GBC-600
Film width: 100-600mm
Screw size: 55mm
Main motor Power: 22kw

Specifications

Study more key configurations of this machine.
Model name           Twin head film blowing machine
Final product  HDPE LDPE recycled material Caco3 add, bio-degradable plastic film
Application  Garbage bag, T-shirt bag, Shopping bag, Hander bag
Material  HDPE, LDPE, BIO, Recycled material, Caco3 added
Output range 20-70kg/h (According to screw size)
Optional device Auto loader,rotary die unit,double rewinder,corona treater,masterbatch dosing system,embossing roller
Delivery time  30-60days
Technical assiatance Oversea Machine commissioning services are available.

Video Show

Watch how the machine working in production.
Silstar Machinery’s production line has coverd variety types of blown film machine,bag making machines, while bag on roll machines are the most advanced and competitive machines among of these.
If you are the plastic bag maker who are looking for suatible rolling bag machines,  we are able to provide you the first-rate machines and most professional advises during the producition.

Description

Read the complete introduction of machine and component pictures.
The twin head blown film machine offers an economic alternative and has a much faster return on investment comparing to a single head. It also called multi-functional blow film machine, which means it even could use to blow two different widths film(such as 65mm and 80mm in diameter),  different types(like flat film and gusset film)at the same time.
It is particularly suitable for those plastic bag makers who are looking for  machine with such features that can improve productivity but has low expenses.
Comparing to extruders with a single die head, the twin die head extruders can reach at a higher productivity,  when producing the samll width film, as the high extrusion total output is dispersed into two separate tunnel of the die heads but not one.

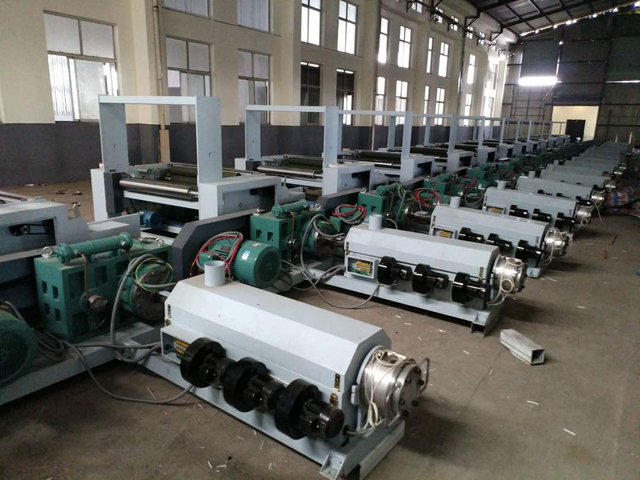

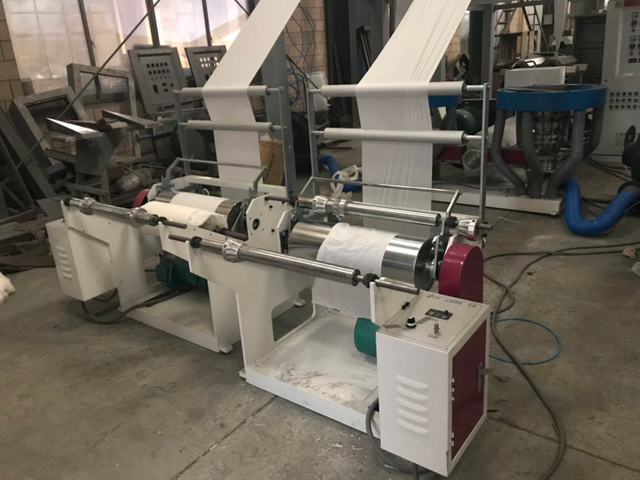

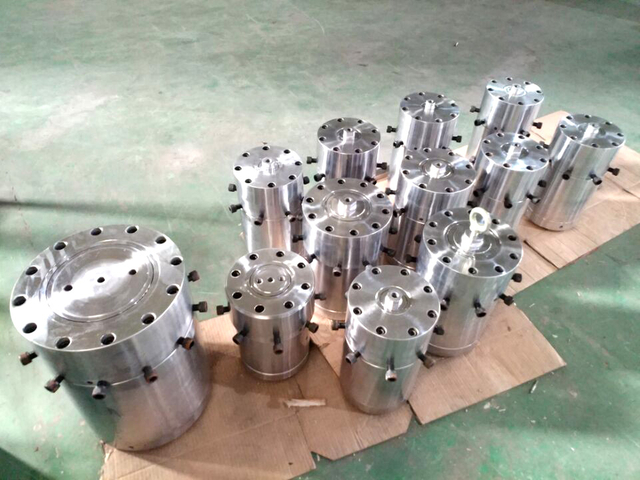

              Detail Pictures
