HOME PRODUCTS Bag Making Machine  / 1-1-1 High speed star seal perforated garbage bag on roll making machine

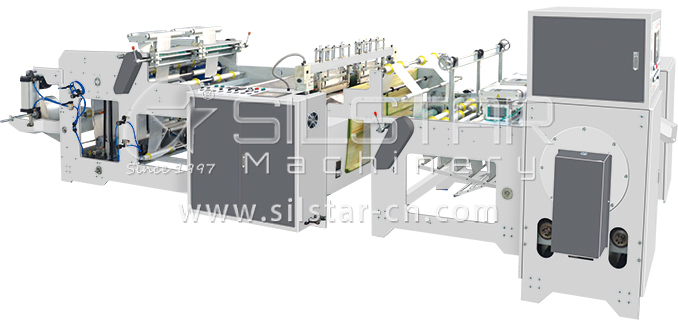

High speed star seal flat perforated garbage bag on roll making machine

  • High speed star seal flat perforated garbage bag on roll
  • HDPE/ LDPE and bio-degradable garabage bag without core in household using.
  • Optional auto paper labeling machine.
Output                             200-500pcs/min
Bag width                       100-230mm
2 hours

 Installed to
Production
15 years

Everage
lifetime
99.9%

Rate of
Bag pass

Applications

Plastic bags this machine can produce.

Select Your Model

Items: GBDSA-180*2
Work line:one deck, two lines
Max bag width: 100-180mm x2
Max bag length: 200-1000mm
Output : 100-250pcs/min x2
Total power: 13kw
Items: GBDSA-200*2
Work line:one deck, two lines
Max bag width: 100-200mm x2
Max bag length: 200-1000mm
Output : 100-250pcs/min x2
Total power: 14kw
Items: GBDSA-230*2
Work line:one deck, two lines
Max bag width: 150-230mm x2
Max bag length: 200-1000mm
Output : 100-250pcs/min x2
Total power: 14kw

Specifications

Study more key configurations of this machine.
Model name  High speed star seal perforated garbage bag on roll making machine
Final product        Star seal bag on roll
Application  Garbage bag,trash can liner
Material  HDPE, LDPE, LLDPE, BIO, recycled material, CaCO3 compound, masterbatch and additives
Output range 100-250pcs/min x2
Optional device  Automatic paper labeling machine
Delivery time 30-60days
Warranty 1 year
Technical assiatance Oversea Machine commissioning services are available.

Video Show

Watch how the machine working in production.
 Silstar Machinery’s production line has coverd variety types of bag making machines, while bag on roll machines are the most advanced and competitive machines among of these.
 If you are the plastic bag maker who are looking for suatible rolling bag machines,  we are able to provide you the first-rate machines and most professional advises during the producition.

Description

Read the complete introduction of machine and component pictures.
The high speed star seal flat perforated garbage bag on roll making machine is speacial designed for making HDPE/ LDPE and bio-degradable garabage bag without core in household using.
The high speed star seal flat perforated garbage bag on roll making machine is equipped with hot sealing knife and perforation knife, two knives are designed together in order to avoid sealing seam’s stretching problems, and also helps improving speeds.
With two sets of servo motors, two sets of dancing roller, four sets of EPC, and special designed sealing knife & perforation knife, the automatic double line high speed star seal flat bag on roll making machine can reaches at the super high speed of 130 meters per minute, also the rolling plate in rewinder part could turn ten times per minute.
              Detail Pictures
