HOME PRODUCTS Bag Making Machine  / 1-1-4 Double fold perforated bottom seal bag on roll making machine

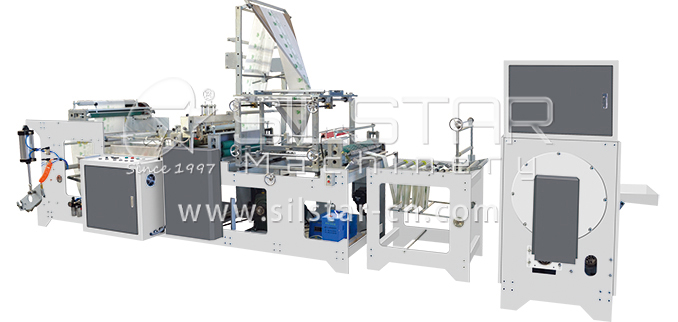

Double fold perforated bottom seal bag on roll making machine

  • Automatic change roll device
  • Garbage bag on roll and large trash can liner without core.
  • HDPE,LDPE
  • Optional automatic paper lableing machine
Output                            70-120pcs/min
Bag width                      300-1000mm
2hours

 Installed to
Production
15 years

Everage
lifetime
99.9%

Rate of
Bag pass

Applications

Plastic bags this machine can produce.

Select Your Model

Items: GBDR-600
Work line: one deck, one line
Rewinder width: 100-150mm
Max bag length: 300-1000mm
Output : 70-120pcs/min
Total power: 8kw
Items: GBDR-800
Work line: one deck, one line
Rewinder width: 100-200mm
Max bag length: 300-1000mm
Output : 70-120pcs/min
Total power: 9kw
Items: GBDR-1200
Work line: one deck, one line
Rewinder width: 150-250mm
Max bag length: 300-1100mm
Output : 70-120pcs/min
Total power: 10kw

Specifications

Study more key configurations of  this machine.
Model name  Double fold perforated bottom seal bag on roll making machine
Final product    Double fold bag, heavy duty bag
Application Garbage bag,trash can liner, construction garbage bag
Material  HDPE, LDPE, LLDPE ,BIO,recycled material, CaCO3 compound,  masterbatch and additives
Output range 100-120pcs/min
Optional device  Automatic paper lableing machine
Delivery time 30-60days
Warranty  1 year
Technical assiatance  Oversea Machine commissioning services are available.

Video Show

Watch how the machine working in production.
Automatic double folds garbage bag making machine can customized, to make big and small size double folds bag,garbage bag.Unwinding use motor to control the tension of feeding film.Automatic rewinder can save your time.
This  double folds bag making machine also can work with auto paper labeling machine.

Description

Read the complete introduction of machine and component pictures
Silstar’s automatic double fold bag making machine is especially for making folded garbage bag, heavy duty bag, construction garbage bag, sanitation garbage bag and so on….

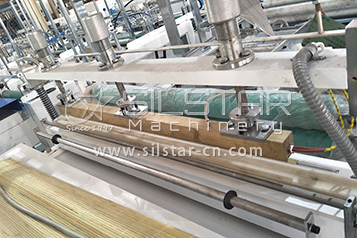

Double fold bag is usually used for those garbage bags requirs high-strength, high-capacity, while the machine’s special designed hot sealing knife exactly can help. It makes bag bottom sealed firmly even in a wide width, for example 1200mm. Also both bag made of HDPE and LDPE material are all applicable.
What is worth to mention is this machine has a samll model GBDR-400 pet poop bag making machine.  It’s rewinding system is quite different from the nomal model, because it has the unique paper core feeding system to make pet poop bag with core.

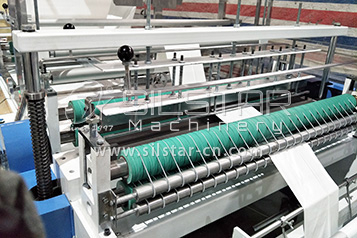

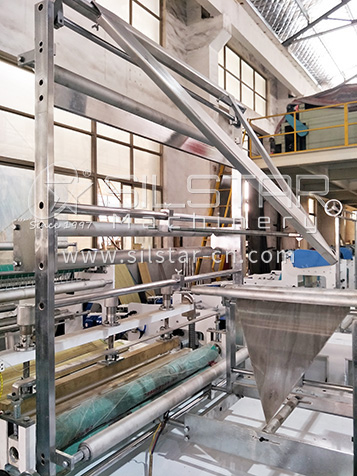

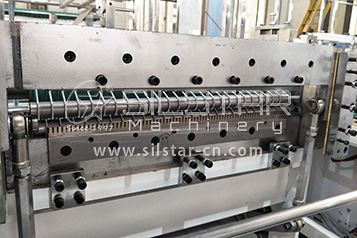

              Detail Pictures
